● For systems with at least 1" of insulation up to 7" of insulation.
● Separate kits for 2-Ply SBS and Single Ply membrane roof systems.
● For systems with at least 1/2" of insulation and less than 1" of insulation.
● Separate kits for 2-Ply SBS and Single Ply membrane roof systems.
● Contains necessary tools to install the Recon-o-Sense sensor.
- Contact us for pricing and sale info.
- Contact us for pricing and sale info.
- $150: prices listed in Canadian dollars.
● ⅞” (22mm) Drill Bit
● ⅞” (22mm) Coring Tube, with Turning and Plunging Rods
● Cutting Tool
- For 2-Ply SBS Roof Systems
● Manufacturers Approved White Pourable Sealer and Required Primers (To Install the Recon-o-Sense Indicator)
- For Single Ply Roof Systems (EPDM, TPO, PVC)
● Manufacturers Approved Primer for Single Ply Membranes (To Install the Recon-o-Sense Indicator)
● Tape Measure
● Scissors or use the supplied cutting tool in the install kit
● Marking pens or Marking Crayons
● Cordless Drill
-The Recon-o-Sense sensor can be installed at any location on the roof system, to maximize effectiveness, it is recommended that the sensors be installed at or near the following leak-prone locations:
● Walls or Parapet Walls
● Drains or Drain Sumps
● Curbs
● Sleepers
● Scuppers
● Flanged vents
● Roof pipe stacks
● locations of ponded water
- Currently works on conventional roof systems with EPDM, TPO, PVC, and 2 ply SBS membrane.
- Yes, but requires a 6" x 6" self-adhered base ply patch to be installed over the installed sensor as torching directly to the sensor will damage the product.
- Yes it can be replaced, but any leak that's caused the sensor to trigger would need to be repaired
first.
- To install a new sensor a 6'x6' foot area surrounding the location of the new sensor would have to
be cutout and removed then replaced with new insulation to prevent any existing wet insulation to
trigger the replacement sensor.
- No, any wet or damp insulation can set off the trigger prematurely.
- No, The Recon-o-Sense sensor is a single use sensor and would need to be replaced with a new sensor.
- The roof system would also need to be dry in the area to reinstall a new sensor.
Attribute Name
Value
110°C
Yes
Yes
Attribute Name
Value
Yes
Yes, has been evaluated to water pressures up to 30 psi.
Attribute Name
Value
Works with Wet and Damp Insulation
None
7 inches, but can special order length to 10 inches
Attribute Name

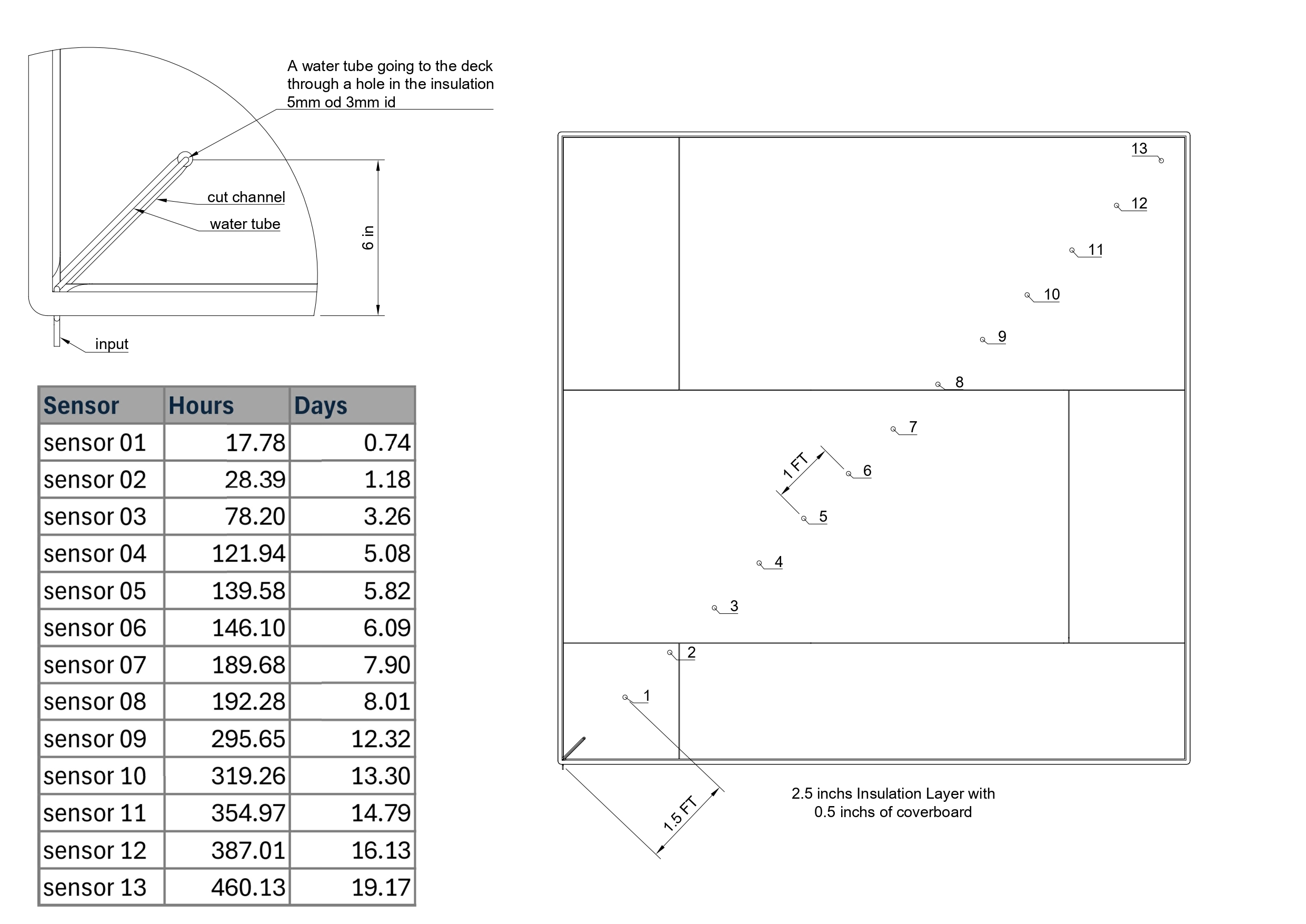

Field Activation Test of 13 sensors in a 10ft x 10ft test roof with one drop every 5 seconds or 9.7ml/hr of water ingress:
